 Home > 제조기술&연구개발 > 제조기술 |
|
|
|
|
 |
| |
 |
| |
 |

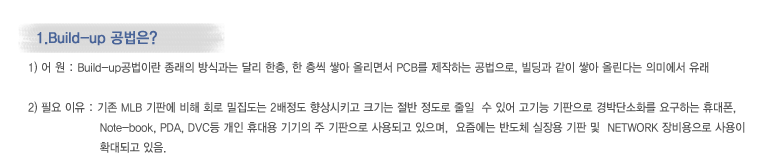

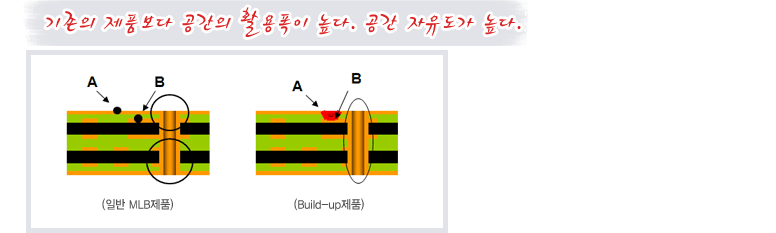

| |
| TYPE |
A TYPE |
B TYPE |
C TYPE |
| STATUS |
Mass Production |
Mass Production |
Mass Production |
| 그림 |
 |
|
 |

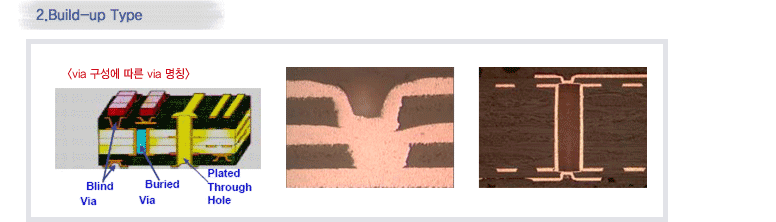

| Via종류 |
① BVH ② PTH |
① BVH ② PTH ③ IVH |
① BVH ② PTH ③ IVH ④ 3L BVH |
| TYPE |
D TYPE |
E TYPE |
F TYPE |
| STATUS |
Pre Production |
Pre Production |
Pre Production |
| 그림 |
 |
 |
 |
| Via 종류 |
① BVH ② PTH ③ IVH ④ 3L BVH ⑤ IBVH |
① BVH ② PTH ③ IVH ④ IBVH |
① BVH ② PTH ③ IVH ④ 3L BVH ⑤ IBVH |
|
| |
 |
| |
| Item |
Description |
Remark |
| PCB Size |
500 x 450 |
Max. |
| PCB Layer |
40L |
|
| PCB Thickness |
4.8T |
Max. |
| Drill Size |
0.1mm |
Min. |
| Impedance Control |
50Ω +/- 10% |
Special +/- 7.5% |
| Pin Pitch |
0.4mm |
|
| PCB Material |
FR-4 / RCC |
|
|
| |
|
|
|
|
|
 |
|
 |
|
|
