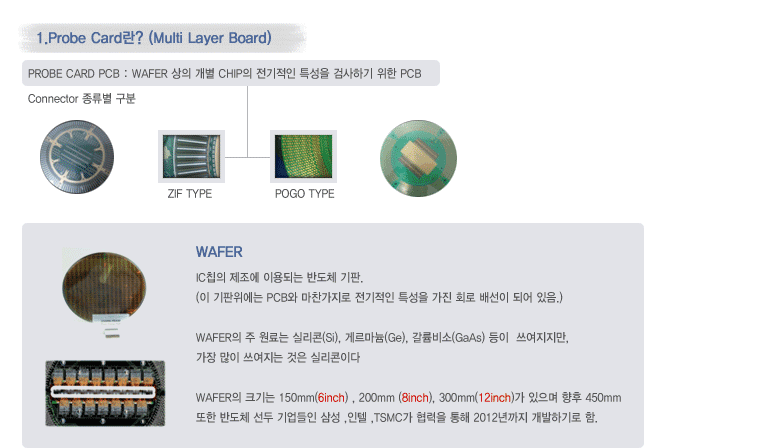

  Size Thickness Main PCB Connection
TEST 305 6.2T ZIF Connector : 64EA
330 6.2T -Pogo
440 6.2T ZIF Connector : 96EA
440 6.2T ZIF Connector : 96EA
440 6.2T ZIF Connector : 96EA
480 6.2T ZIF Connector : 100EA
480 6.2T ZIF Connector : 100EA
480 6.2T ZIF Connector : 100EA
480 6.2T ZIF Connector : 100EA
480 6.2T ZIF Connector : 112EA

  Size Thickness Main PCB Connection
WBI 440 6.2T POGO
440 6.2T POGO
480 6.2T ZIF Connector : 48EA

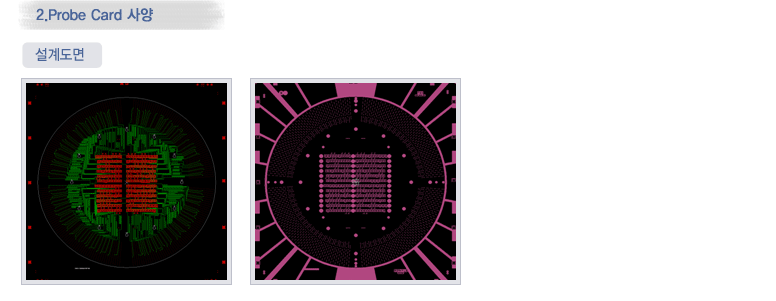

일반적인 MAIN PCB 사양
Size Ø (X) +/- 0.1mm
Thinkness 6.2T +/- (X) → 카드社별 공차 부분 다름
Impedance 50ohm +/- 10%
Leakage 10nA이하
평탄도(휨) 300um이하


Item Description Remark
PCB Size Max 765 x 560 (M/B) 480Φ (PROBE CARD) Max
PCB Layer 40L 58L Max
PCB Thikness 6.3T Max
Drill Size 0.15Φ (3.4T) / 0.20Φ (4.6T) / 0.35Φ (6.3T)
ImpedanceControl 50Ω +/- 10% Special +/- 7.5%
Pattern Width Inner : 60um / Exterior : 80um
Pattern Space Inner : 70um / exterior : 90um
PCB Material FR-4 High TG / PPE / Polymide
